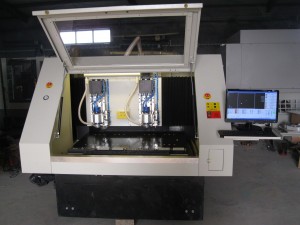

DD25612

1,The equipment is desigined as compact structure which has been patented of ZL200420084274.5.
2,The pressure foot axis is an integral casting to ensure it is strong and sturdy. The pressure foot support is designed as a linear bearing structure and is controlled with SMC cylinder(Japan) connected, which helps to ensure the equipment works smoothly and has a longer lifetime
3,The material of the mobile cable for each axis is high quality product sourced from Germany
4,The axis movement control system is designed with Analog closed-loop control to achieve higher effectiveness
5,The equipment features tool length measurement for safe operation
6,The equipment provides more tools library and manipulator operating for tools management(Patent: ZL2004 20084274.5)
7,The material of equipment is natural granite which will ensure the operation accuracy

Main Parameter

MACHINE MODEL	DD25612
Applicable	Multilayer Board, Double layer board
SPINDLES	2只（Domestic made  D1722  Air bearing spindle）
MAX WORKING AREA(XY)	550×630mm/Axis
Table size	555×650mm/Axis
Max spindle speed	160000rpm
NOS.OF TOOL	100 Tools/Axis
X.Y AXIS Maximum speed	50m/min  Panasonic AC servo
X.Y acceleration	0.8g
Z acceleration	3g
Z AXIS Maximum speed	30m/min  sanyo denki AC servo
Min Drilling hole size	0.2mm
POSITIONING ACCURACY (X、Y-AXIS)	±0.005mm
REPOSITION ACCURACY(X、Y-AXIS)	±0.0025mm
Max drill hole per minute	300 holes
Liner Scale brand and RESOLUTION	RENISHAW 0.001mm
Each Spindle Distance	555mm
LM guide, ball screw brand	Taiwan-Hiwin/PMI(X Y Axis guide and ball screw) and japan-IKO(Z Axis guide)
Tooling Broken Detection	Contact current
DRILLING ACCURACY	±0.025mm（test in plant：FR4-1.6MM板材，Φ1.6钻头钻孔）
Tool inspection	YES（红外线检测,Infrared inspection）
Long groove (slot drilling)acceleration	YES(compare with tradition slot drilling, keep high speed, while ensure no tooling broken, this will improve work efficiency)
Control System	Iseatech system
Air cooling machine	Made in china
Spindle oil cooler Equipment	Made in china
MONITORS	LCD
COMPUTER	Electronic hard disk, P4, pre-installed WinXP, USB interface
BODY MATERIAL	All-granite structure
AIR REQUIREMENT	600～700Kpa
POWER CONSUMPTION	3KW
POWER REQUIREMENT	380VAC±10%  50Hz 7KVA
MACHINE WEIGHT	3500Kg

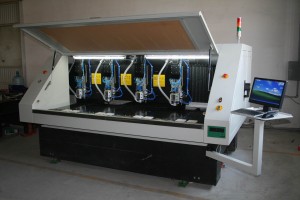

DD25416A/B

1,The equipment is desigined as compact structure which has been patented of ZL200420084274.5.
2,The pressure foot of axis is casting integration to ensure the strong and sturday.The pressure foot supporting is designed as linear bearing struct and controled with SMC sylinder(Japan) connected which to ensure the equipment working smooth and longer lifetime
3,The material of mobile cable with each axis is high quility product provided by German
4,The axis movement control system is designed as Analog closed-loop control to achieve the higher effectiveness
5,The equipment provides a feature of tool length measurement for safty operation
6,The equipment provides more tools library and manipulator operating for tools management(Patent: ZL2004 20084274.5)
7,The material of equipment is natural granite which will ensure the operation accuracy

Main Parameter

Model	DD25416A	DD25416B
Spindle Quantity	4	4
X、Y axis Max Move Speed	50	30
Z axis Max Move Speed	30	30
Control System	Iseatech System	Iseatech System
Servo System	交流伺服ACservo	交流伺服ACservo
Tooling Quantity	50X2Tools/Axis	50X2Tools/Axis
Max Work Area	555X650(mm)	555X650(mm)
Positioning Accuracy	±0.005mm	±0.005mm
Repeating Accuracy	±0.0025mm	±0.0025mm
Spindle Speed	20K-200K	20K-200K
Voltage	380VAC±10	380VAC±10
Power	5KW	5KW
Temperature	20℃±2℃	20℃±2℃
Size	3295X1850X1650	3295X1850X1650
Weight	7000KG	7000KG

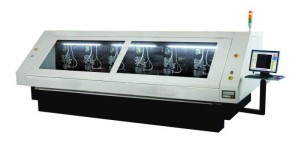

DD50616

Advantages:

♦ Unique X-Z axis structure: X-Z axis unique compact structure (with patenet no. ZL200420084274.5), small size, light in weight, improve mechanical strength efficiently, lower mechanical tear and wear, ensure work precision, improve work efficiency.
♦ High precision micro hole : double pressure foot switch, drill ¢0.1mm micro hole.
♦ Accurate tooling broken detection function: contacted tooling broken detection function, no influence by dust, free maintenance.
♦ Fast drill function: contacted detection function exactly measure pressure foot length on PCB board, fast drilling, this will improve work efficiency.
♦ High reliable Manipulator: Japan SMC air supply manipulator, manage over 200pcs tooling.
♦ High Speed ball screw: NSK ball screw, DN value reach 200 thousand. High speed, lower noise, longer work life, performance is equal as liner motor.

Parameter

Machine Model	DD50616
Spindle Quantity	6
X、Y axis Move speed	50
Z axis move speed	30
Control System	Iseatech
AC Servo	Japan ACservo
Tooling quantity	50X2Tools/Axis
Max work size	540X650(mm)
Positioning Accuracy	±0.005mm
Repeat Accuracy	±0.0025mm
Spindle speed	20K-200K
Voltage	380VAC±10
Power	8KW
Temperature	20℃±2℃
Size	4400X2100X1700
Weight	11000KG
